NEW Steel Construction.

Coated with 2-Part Epoxy Paint.

Poly Pro Plate Packs in (4) Welded Sections.

Inlet:  8″.  Effluent:  6″.  Sludge Drain:  4″

Floc Tank Dims:  220″L x 68″W.

2 Week Lead Time.

 (4) Plate Pack Assemblies

(15) Internal Chambers Per Plate Pack Assembly

15.25 Sq. Ft. Per Chamber

930 Sq. Ft. Total

Steel construction.

Sand blasted and painted with 2-part epoxy.

New PVC plates.

3″ Outlet at Bottom.

3″ Inlet at Top.







NOTE:  ONLY FITS MODEL LCL CLARIFIERS.

Inlet:  6″

Oulet:  8″

NEW Steel Construction.

8 – 10 Week Lead Time.

Coated with 2-Part Epoxy Paint.

Includes Floc Tank.

Includes FRP Internal Plates.

Shipping dimensions:   1 of 2:  130″L x 70″W  x 44″H.  2 of 2:  173″L  x 71″W x 64″H.  Estimated weight is 6,240 lbs.

NOTE:  ONLY FITS MODEL LCL CLARIFIERS.

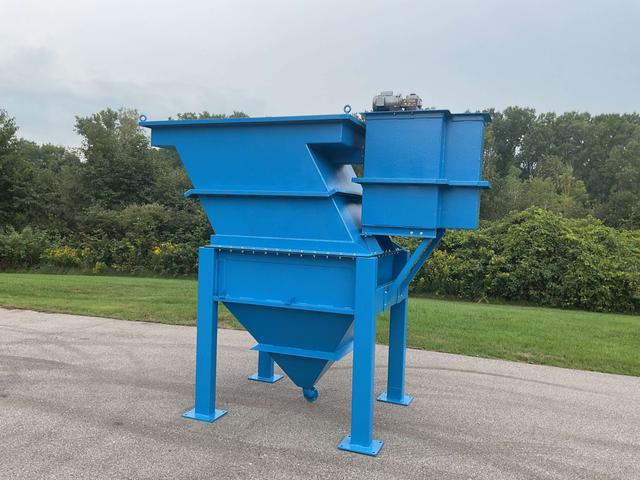

Includes:  Floc tank with rake mixer.

Steel construction.

Sandblasted and painted with 2-part epoxy paint.



PVC plate packs.

Fiberglass round floc tank, no mixer.  3′ W x 3’D.

Sandblasted and coated with 2-part epoxy paint.

Does NOT include floc tank.  Floc tank can be added for an additional $7,500.

NEW Steel Construction.

Coated with 2-Part Epoxy Paint.

Poly Pro Plate Packs in (4) Welded Sections.

Inlet:  8″.  Effluent:  6″.  Sludge Drain:  4″

8-10 Week Lead Time.

 (4) Plate Pack Assemblies

(15) Internal Chambers Per Plate Pack Assembly

15.25 Sq. Ft. Per Chamber

930 Sq. Ft. Total

NEW Steel Construction.

8 – 10 Week Lead Time.

Coated with 2-Part Epoxy Paint.

Includes Floc Tank.

Includes FRP Internal Plates.

Shipping dimensions:   1 of 2:  130″L x 70″W  x 44″H.  2 of 2:  173″L  x 71″W x 64″H.  Estimated weight is 6,240 lbs.

Stainless Steel Construction with Steel Legs.

Built-in Floc Tank.
